This plugin creates a Gantt chart view using Frappe Gantt. You can set tasks and subtasks and adjust the start date, end date and progress by dragging. Fields in a table are used for subtasks.
By using this product, you are deemed to have agreed to the Terms of Service.
This plugin requires a custom view. Create a custom view in the app that uses the plugin, and enter the following in the HTML code field.
Boost!<div id="bst-gantt"></div>Clear the "Show pagination" checkbox.

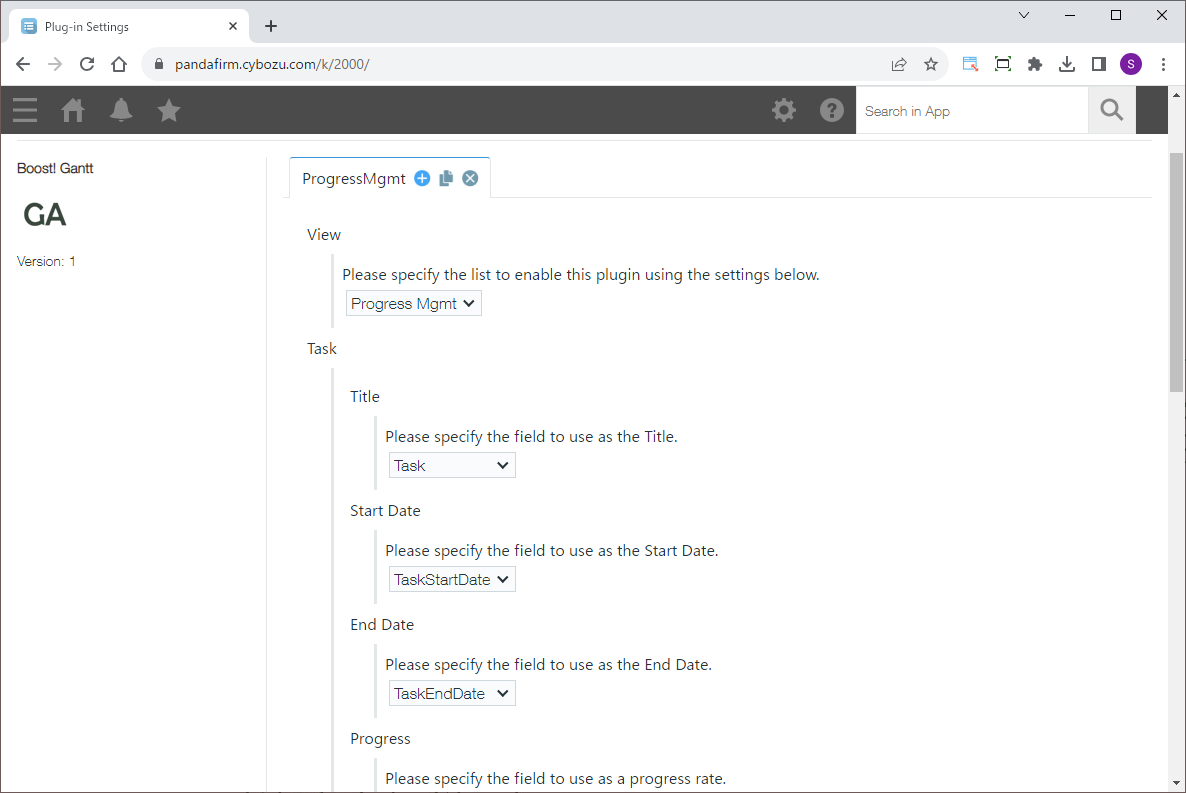

Open the plugin settings screen and specify the following items.
The fields specified for tasks must be outside tables, and the fields specified for subtasks must all be in the same table.
Only number fields with 0 as the minimum and 100 as the maximum in "Limits of Value" can be specified for progress.
If you set "Transition to the editing page" to open the detail screen, you cannot return to the Gantt chart after finishing or canceling the edit.
Subtasks are shown under the task for each table row and are connected by arrows in row order. Rows with an empty start date or end date are not shown. If you do not use subtasks, the subtask items can be omitted.

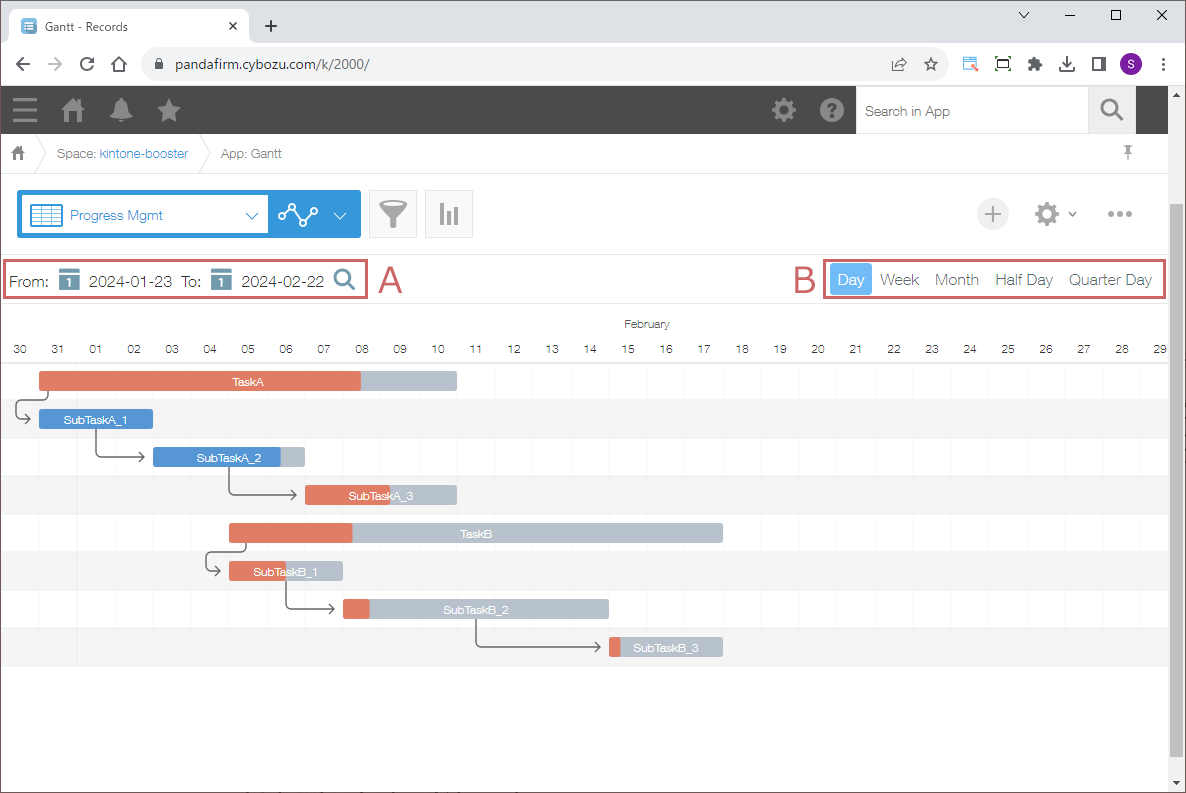

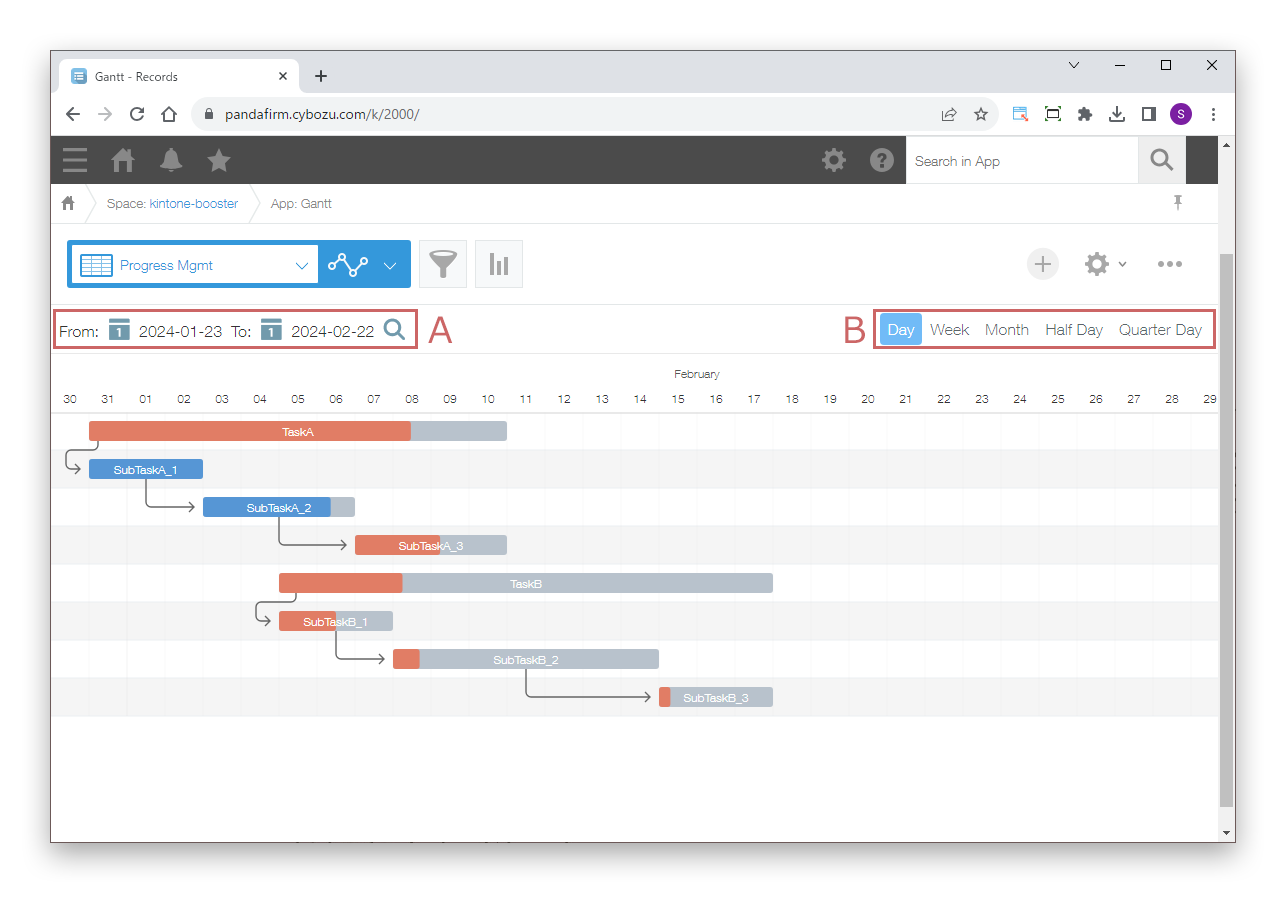

When you open the custom view specified on the settings screen, the Gantt chart is shown. To change the period shown, select a date in area A of the image and click the magnifier button. The default period is one month from today. Switch the display format of the Gantt chart in area B between "Day", "Week", "Month", "Half Day" and "Quarter Day".
This plugin alone cannot change the background and text colors of task bars. To change them, you need Boost! Style.
On the event page of Boost! Style, select "Record Detail Page".
The filter conditions and sorting set for the view are also applied to the Gantt chart.

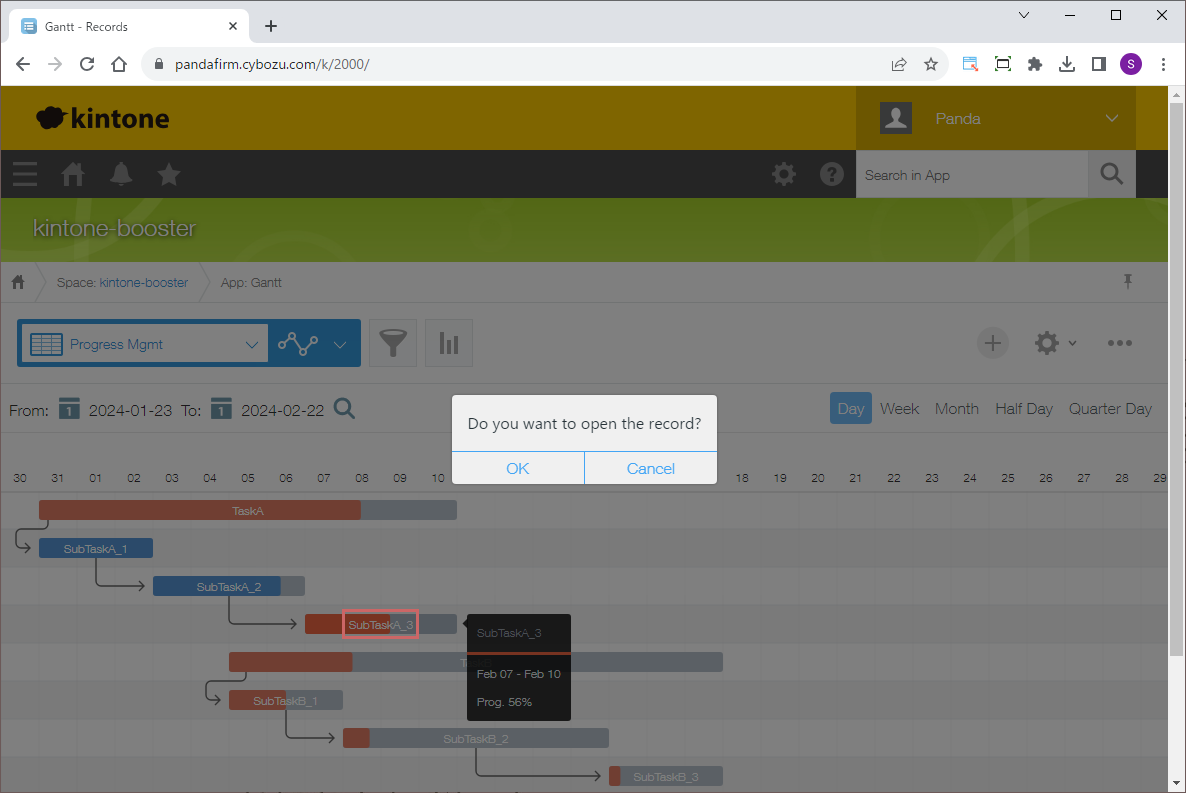

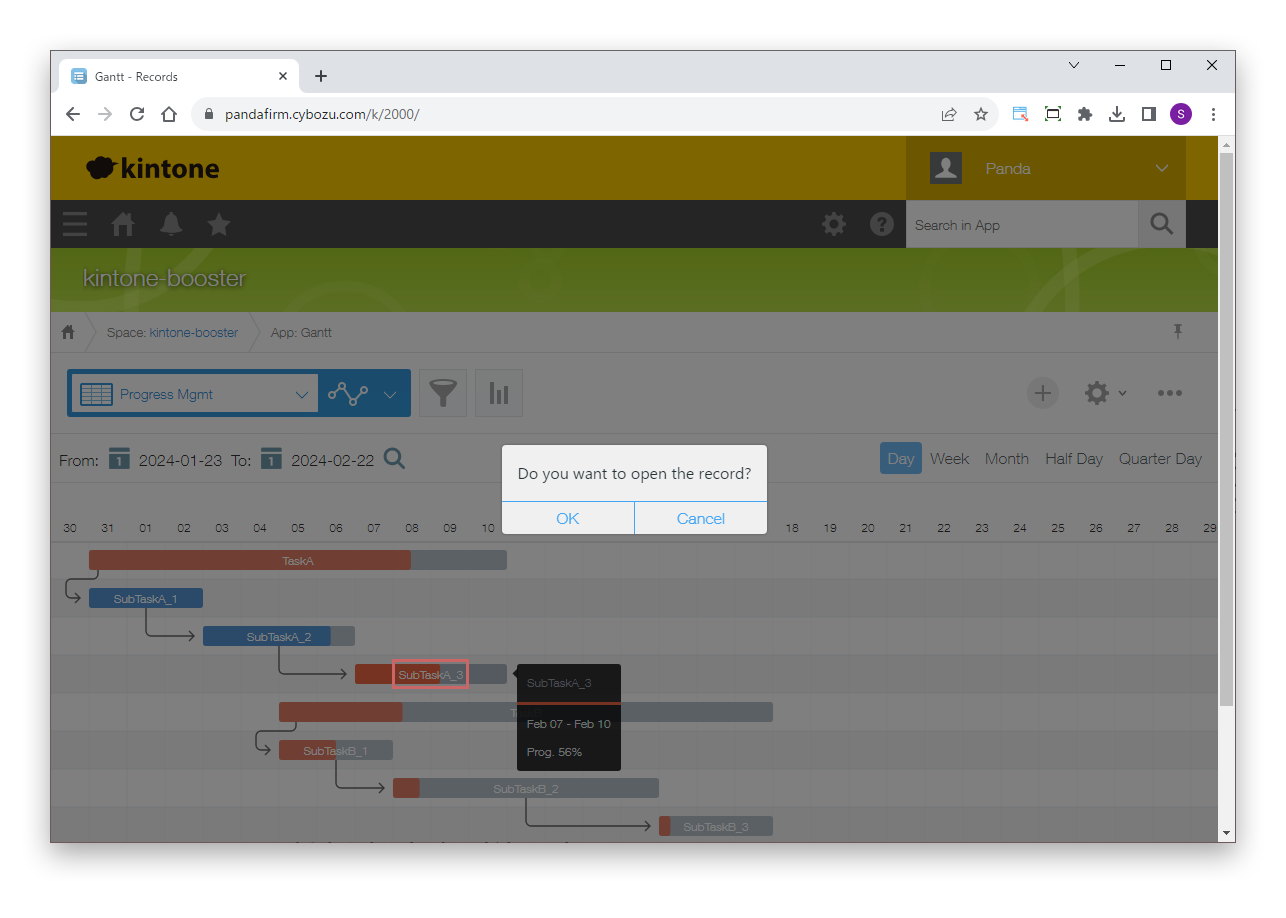

Double-click a task bar, and after a confirmation message, the record edit screen opens.
If you select "Transition to the editing page" on the settings screen, the detail screen opens.
Drag a task bar to move the task.

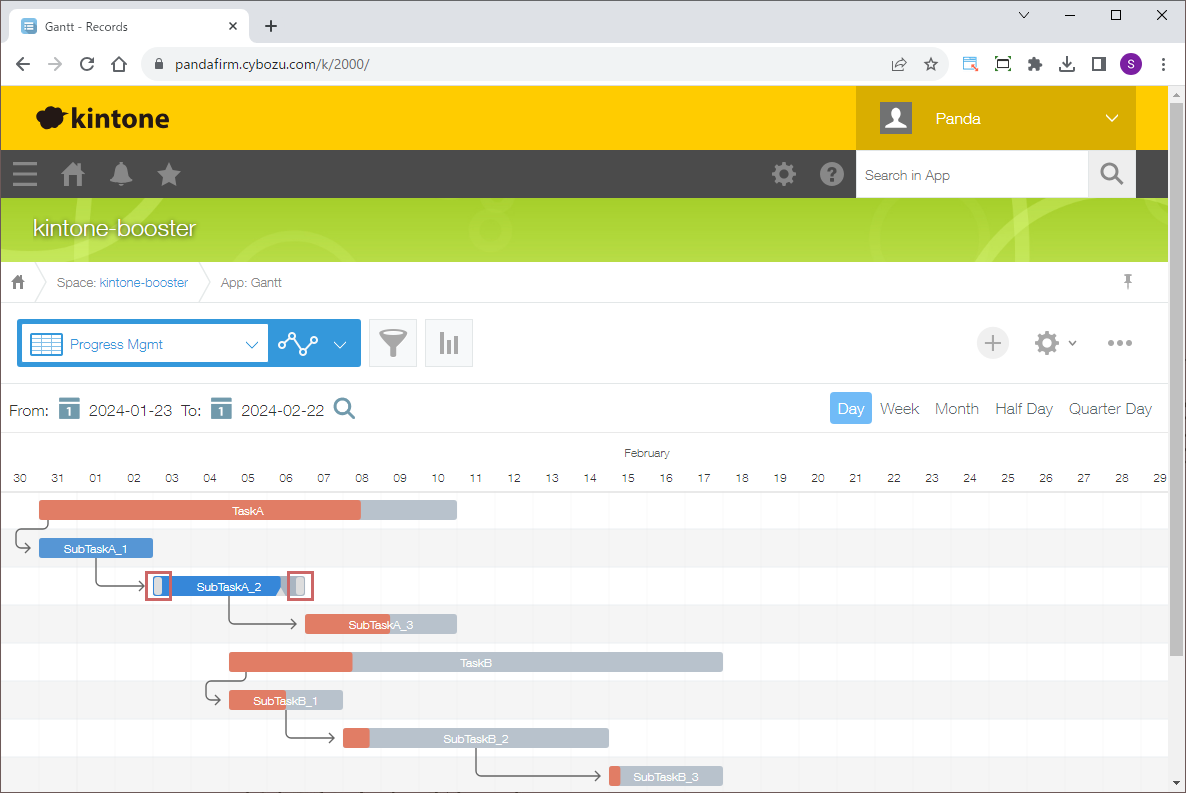

Hover over either end of a task bar and drag to change the start date or end date.
If a field that cannot be edited, such as a calculated field or the created or updated datetime, is specified for the start date or end date, that date cannot be changed.

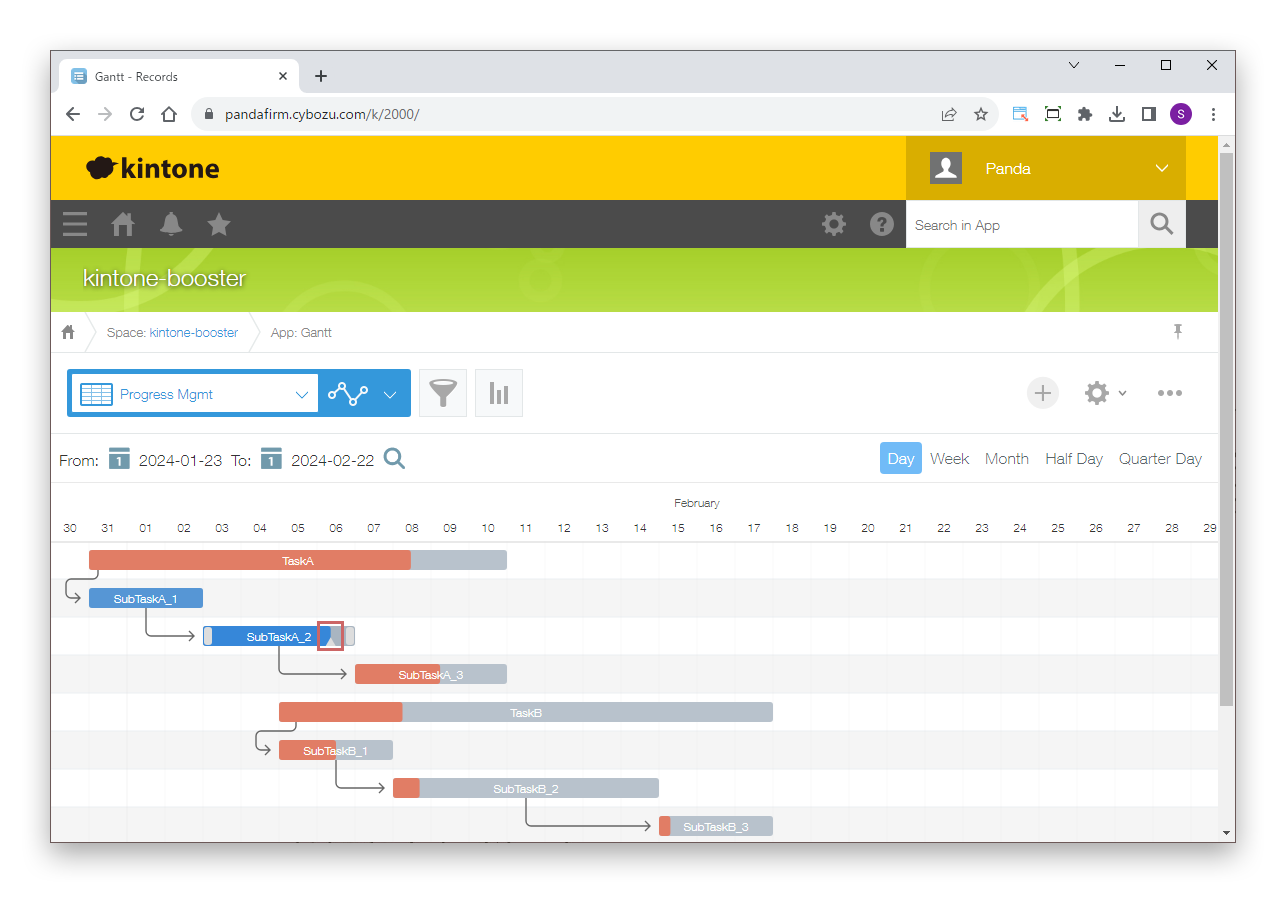

Hover over the handle of the progress part and drag to change the progress.
